MXR CSP033G Gran Torino Boost Overdrive Guitar Effects Pedal
The MXR Gran Torino Boost Overdrive harnesses MOSFET technology to amplify and enrich the natural sound of your rig with the the warm, organic sound of classic tube amps—and it comes with a simple-yet-effective set of controls to shape its tone to complement your setup.

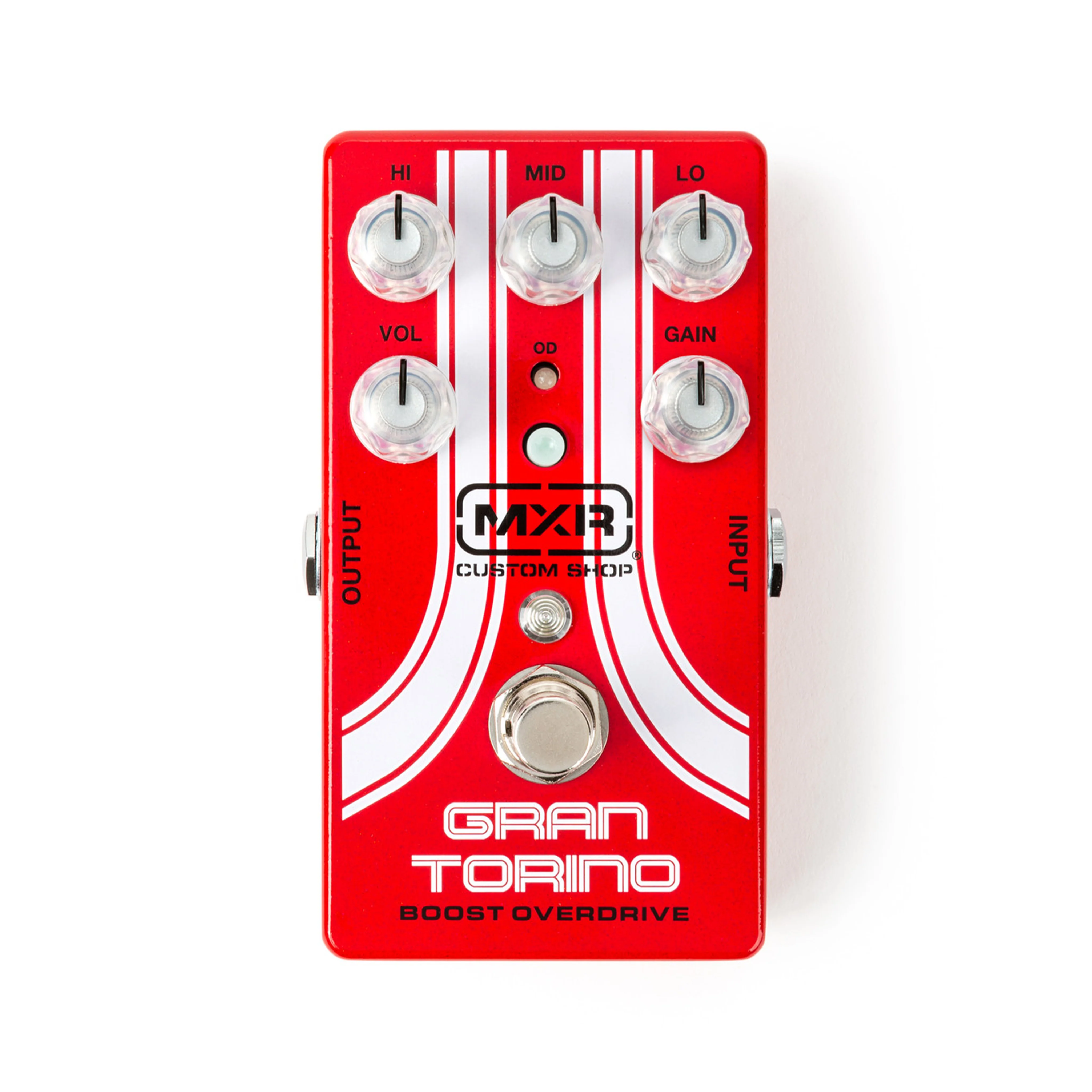

Setup is easy—just dial in your desired Master volume and Gain levels, fine-tune it all with the 3-band EQ, and then choose your output mode with the BOOST/OD switch: Boost for cleaner notes and rich sustain, OD for smooth, mellow overdrive. On top of that, this pedal uses a Class A Low Impedance Output Driver to preserve the integrity of your sound and prevent signal loss across long FX chains.
Specifications:
- Input Impedance: 2.4 MΩ, 1kHz
- Output Impedance: 24 kΩ max
- Nominal Output Level: -17dBV
- Tone Controls: Bass ±9 dB, 40 Hz / Mid: ±5.5 dB, 600 Hz / Treble: ±6.5 dB, 10 kHz
- Distortion Gain: 34 dB to 67 dB, 1 kHz
- Noise Floor: -100 dBV
- Gain Range: 20 dB to 57 dB @ 1 kHz
- Bypass: Buffered
- Current Draw: 4.7 mA
- Power Supply: 9 VDC
